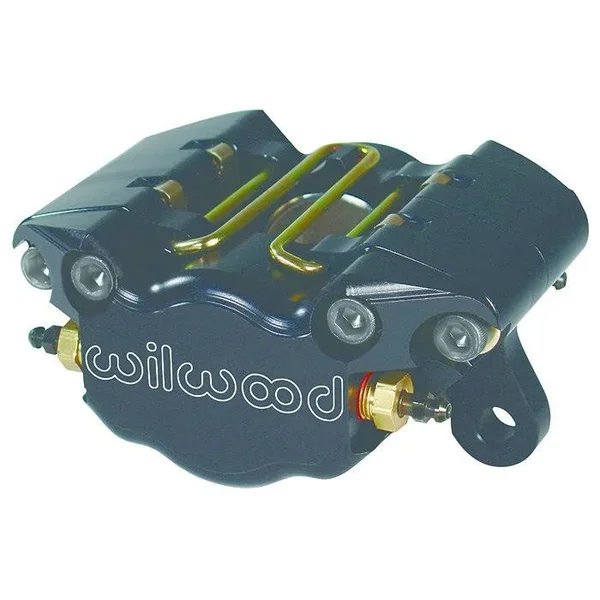

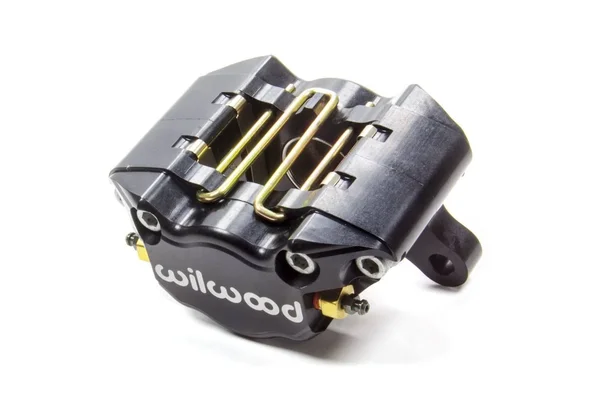

Wilwood 120-9690 Dynapro Billet Caliper

Description

Strengthening this critical area has substantially increased its resistance to deflection and body separation under load. The DPS is loaded with exclusive Wilwood performance enhancements. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever. SRS plates eliminate bridge wear caused by pad gouging. The heavy wall sectional thickness improves pedal firmness and adds to the overall clamping efficiency by eliminating piston backside deflection. The FEA generated body design incorporates a fortified transition between the piston housings and the bridges. The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads. The DynaPro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. Calipers are fully CNC machined from grade alloy billet. The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position. The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top. Calipers are fully CNC machined from premium grade alloy billet. Calipers are fully CNC machined from grade alloy billet. The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads.

Key Features

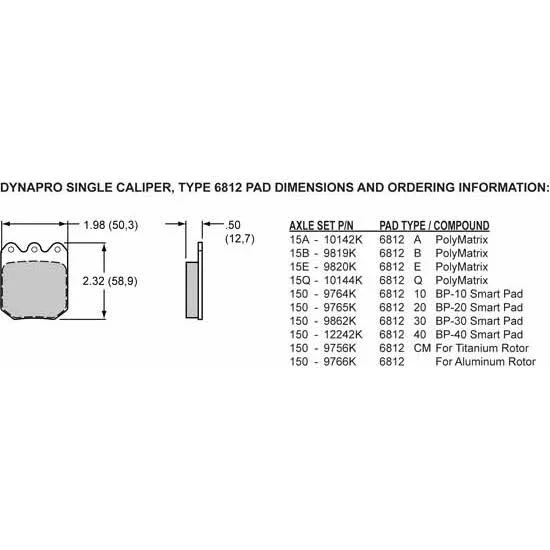

• The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top.

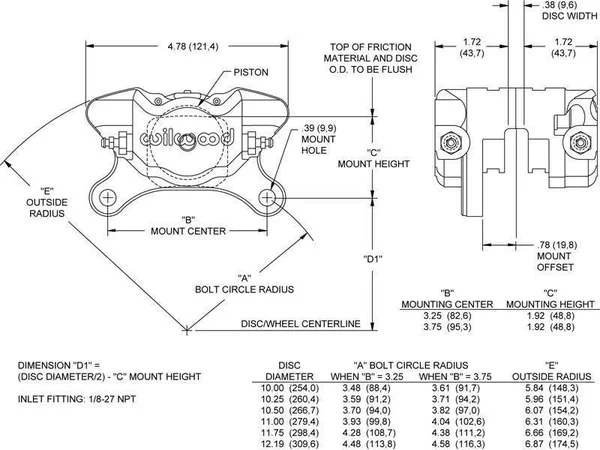

• The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position.
• In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models.
• The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads.
• Calipers are fully CNC machined from grade alloy billet.
• Calipers are fitted with replaceable stainless steel SRS bridge plates.
