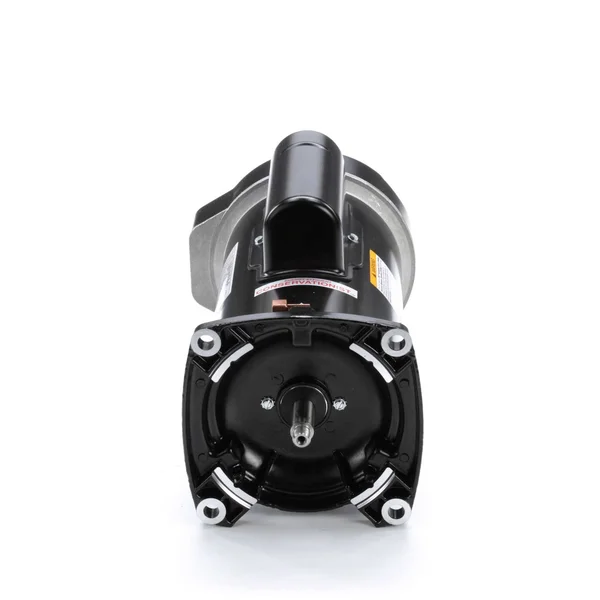

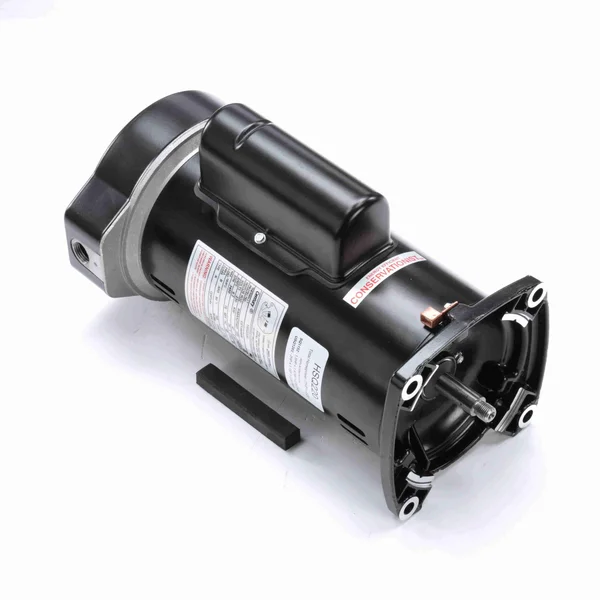

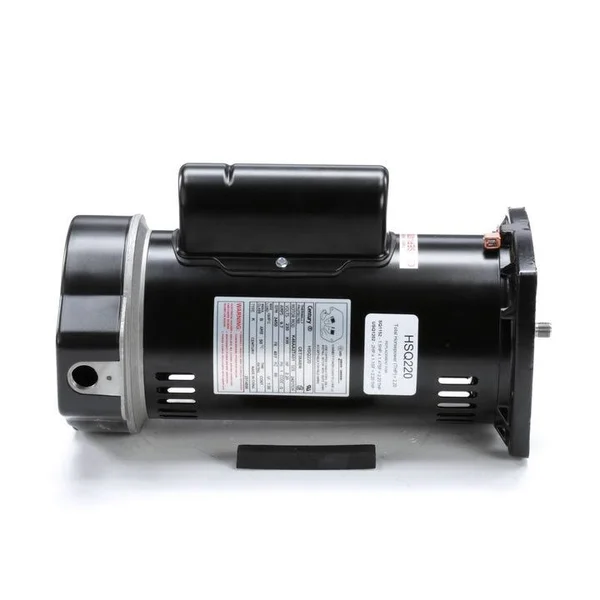

Regal BELOIT HSQ220 2.20 THP Centurion Pro Motor Square Flange

Description

Centurion Pro motors are replacement pool and spa motors that are durable and easy to install. It features TripleSEal protection that is designed into the pump end of the motor to protect the bearings from water, pests, and debris, extending the life of the motor. It has sealed 203 bearings on both ends and also has an open and accessible terminal board and wiring compartment. Along with a UL 1081 design, it is also a Voltage change device with definitive shaft access using a 7/16-inch wrench. With an auto protector and 303 stainless steel threaded shaft, this pump has a patented CENTURY SEAL which is its primary line of defense in preventing moisture from washing the grease out of a bearing. It also has an IP-55 rated lip seal located behind the Century seal to ensure any moisture that might make it past is stopped in its tracks. It also has an integrated bearing lock plate for preventing moisture ingress to the back side of the bearing. This particular model, Regal Beloit HSQ220 2.20 THP Centurion Pro Motor Square Flange, has an open drip proof enclosure, with a Counterclockwise Pump End rotation, a 50-degree Celsius ambient temperature, and 60Hz frequency. This is a single-phase motor which has a Total Output HP of 2.20 HP with a 230 Voltage, 3,450 RPM speed, 9.7 Amperes, a 48Y frame, and a Square Flange. It also has an integrated bearing lock plate for preventing moisture ingress to the back side of the bearing.

Key Features

• It features TripleSEal protection that is designed into the pump end of the motor to protect the bearings from water, pests, and debris, extending the life of the motor.
• Centurion Pro motors are replacement pool and spa motors that are durable and easy to install.

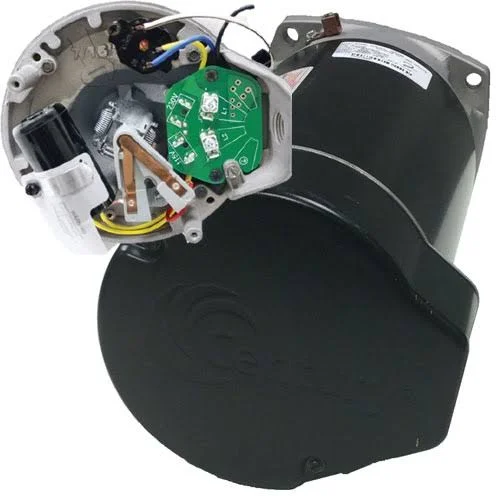

• It has sealed 203 bearings on both ends and also has an open and accessible terminal board and wiring compartment.
• Along with a UL 1081 design, it is also a Voltage change device with definitive shaft access using a 7/16-inch wrench.
• With ball drive end bearing and a rolled steel frame material, its dimensions include an overall length of 14.77 inches, frame length of 10.13 inches, shaft extension of 0.906 inches, and a shaft diameter of 0.625 inches.
• With an auto protector and 303 stainless steel threaded shaft, this pump has a patented CENTURY SEAL which is its primary line of defense in preventing moisture from washing the grease out of a bearing.
