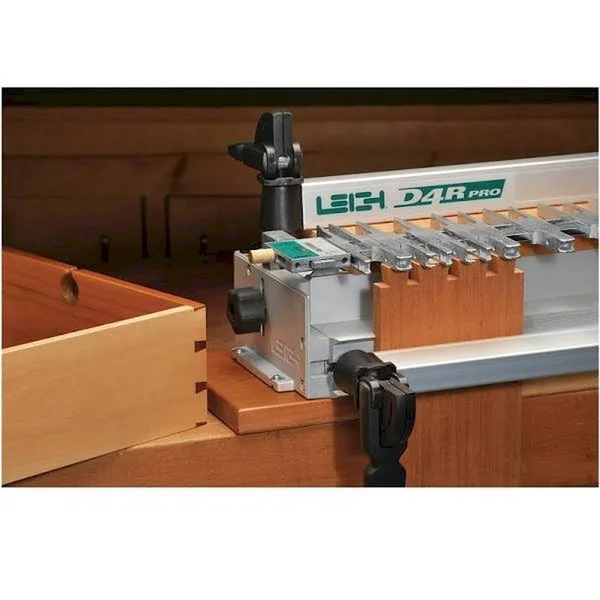

Leigh D4R-PRO Dovetail Jig

Description

Also included is a 1/2 inch to 8mm collet reducer and a 7/16 inch template guide bushing, a comprehensive instruction manual and instructional DVD. Like its predecessor, the D4R easily produces handmade looking dovetail pins and tails. Wooden pieces are clamped into the jig quickly and easily with the cam action clamps which can be adjusted for different stock thickness in seconds, or used to repeat the same clamp tension instantly. Perfect fitting joints for tiny boxes or large case pieces can be produced in a variety of patterns by simply changing the adjustable guide fingers. Maximum pin thickness 11/4 inch. One of the best just got better! Through or half blind dovetails can be easily set up by simply flipping the finger assembly over. The new D4R-24 jig features a one piece aluminum extrusion base with machined-in non marring textured clamping surfaces and machined-in side stops on the top and front of the jig body. The top side stops have a 3/8 inch recess for rabbeted boards. Accepts boards up to 24 inch wide. Jigs are meticulously engineered and constructed. Includes three carbide router bits, a 1/2 inch D x 8 x 8mm dovetail bit and a 5/16 inch x 1 inch x 8mm straight bit for through dovetails, and a 1/2 inch D x 14 x 8mm dovetail bit for half blind dovetails.

Key Features

• Includes three carbide router bits, a 1/2 inch D x 8 x 8mm dovetail bit and a 5/16 inch x 1 inch x 8mm straight bit for through dovetails, and a 1/2 inch D x 14 x 8mm dovetail bit for half blind dovetails.
• Like its predecessor, the D4R easily produces handmade looking dovetail pins and tails.
• The new D4R-24 jig features a one piece aluminum extrusion base with machined-in non marring textured clamping surfaces and machined-in side stops on the top and front of the jig body.
• Jigs are meticulously engineered and constructed.
• The top side stops have a 3/8 inch recess for rabbeted boards.
• Also included is a 1/2 inch to 8mm collet reducer and a 7/16 inch template guide bushing, a comprehensive instruction manual and instructional DVD.
