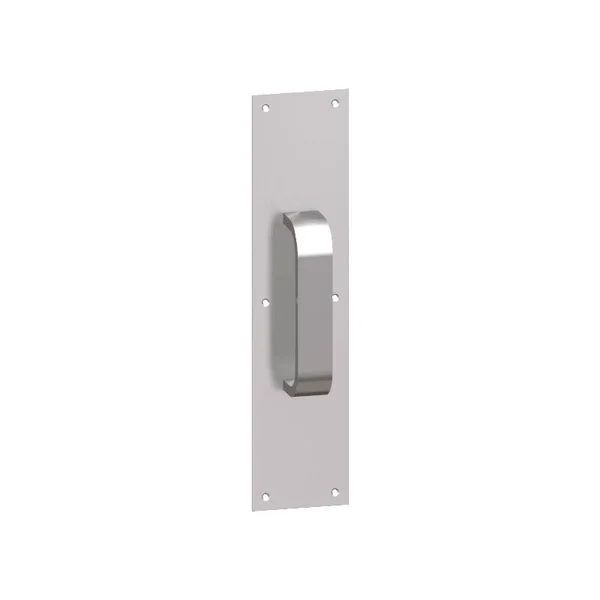

Hager 102G-8x16 8x22 x 16x22 Rounded Bevel Square Corner 0.125x22 Gauge Pull Plate Wit Oil Rubbed Bronze

Description

Specifications: 8 (203mm)Width 16 (406mm) Height 0.125 Thick 8 Center to Center 2 Projection 1-5/8 Clearance 1-3/4 Door Thickness 3/8 W X 1-1/4 L Handle Base 3/4 Handle Inside Corner Radius Material: Brass, Bronze, Aluminum, or Stainless Steel At Hager. They are proud to offer more than 200 different trim and auxiliary door hardware products in a variety of designs, sizes, and finishes that not only look great, but also provide long-lasting wear in any application. Includes (1) 100T pull plate and (1) 2G door pull. This commercial grade pull plate is ANSI 156.6 certified and will be a long lasting and durable door pull in high traffic areas. Includes (6) #6 x 5/8 oval phillips head tapping screws. Plate has rounded bevel on the top and bottom edges. Whatever you need, from pulls to push plates, protection plates to door edgings, wall and floor stops to flush bolts, coordinators, signage, and much more--Hager trim and auxiliary products give you great looks and proven durability. Features: Meets ANSI A156.6 for J407 pull plates. Specifications: 8 (203mm)Width 16 (406mm) Height 0.125 Thick 8 Center to Center 2 Projection 1-5/8 Clearance 1-3/4 Door Thickness 3/8 W X 1-1/4 L Handle Base 3/4 Handle Inside Corner Radius Material: Brass, Bronze, Aluminum, or Stainless. This combination includes a rectangular door pull with 8 centers, a square corner 0.125 gauge push plate with top and bottom bevel and the necessary mounting hardware.

Key Features

• They are proud to offer more than 200 different trim and auxiliary door hardware products in a variety of designs, sizes, and finishes that not only look great, but also provide long-lasting wear in any application.
• Includes (6) #6 x 5/8 oval phillips head tapping screws.
• This commercial grade pull plate is ANSI 156.6 certified and will be a long lasting and durable door pull in high traffic areas.
• This combination includes a rectangular door pull with 8 centers, a square corner 0.125 gauge push plate with top and bottom bevel and the necessary mounting hardware.
• Includes (1) 100T pull plate and (1) 2G door pull.
• Specifications: 8 (203mm)Width 16 (406mm) Height 0.125 Thick 8 Center to Center 2 Projection 1-5/8 Clearance 1-3/4 Door Thickness 3/8 W X 1-1/4 L Handle Base 3/4 Handle Inside Corner Radius Material: Brass, Bronze, Aluminum, or Stainless.
