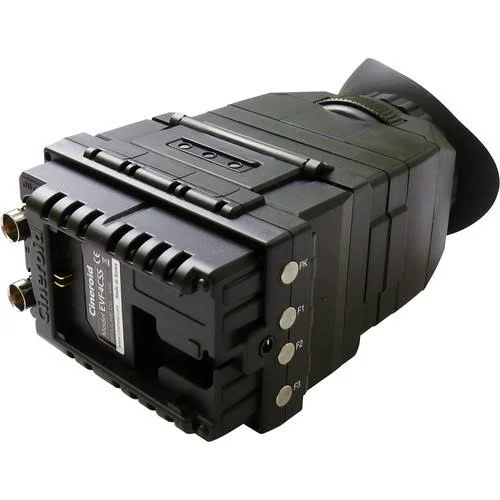

Cineroid EVF4CSE Electronic Viewfinder with SDI Input Loop Through Output

Description

The EVF supports a variety of focus and exposure tools, including two forms of peaking, false color, crop guide, pixel-to-pixel mapping and image flip. Red mode highlights the in focus areas in red, while the sharpness mode outlines in white. The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution. A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having eyesight. False Color The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure. The EVF4CSE features two modes. Crop Guide Darkens portions of the viewing area to help frame a shot in accordance with what it will look like when later cropped to be viewed in different aspect ratios. The EVF4CSE is powered by optional Cannon LP-E6 batteries or from an optional external power supply, that provides 6 to 17 VDC. Clip Guide There are three clip guide modes, color, zebra and both in combination. The SDI input and loop-through SDI output allows you to feed the EVF and send the unmodified signal downstream to an optional director's viewfinder, video village or other display / recorder. The USB port is for firmware updates. A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having perfect eyesight.

Key Features

• A headphone jack and built-in speaker allow you to monitor audio and a 1/4"-20 threaded mounting hole allows you to mount the EVF to your camera using optional articulating arms.
• A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having eyesight.
• The EVF4CSE is powered by optional Cannon LP-E6 batteries or from an optional external power supply, that provides 6 to 17 VDC.
• The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution.
• The EVF supports a variety of focus and exposure tools, including two forms of peaking, false color, crop guide, pixel-to-pixel mapping and image flip.
• The SDI input and loop-through SDI output allows you to feed the EVF and send the unmodified signal downstream to an optional director's viewfinder, video village or other display / recorder.
