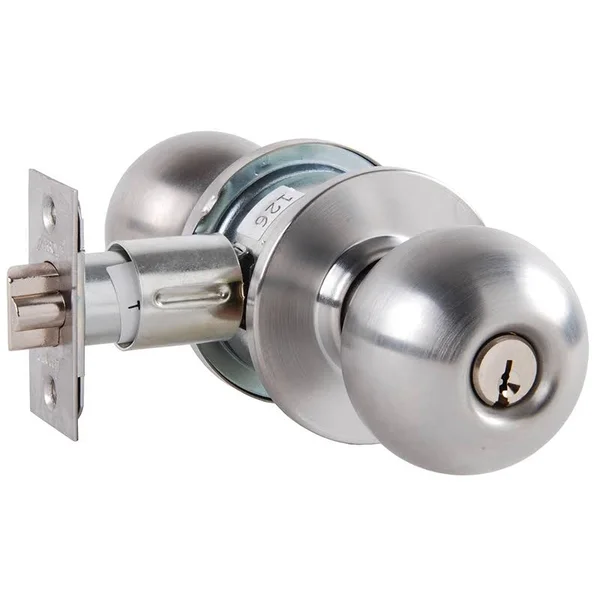

Arrow MK12TA 26D Cylindrical Lock

Description

Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Backset – 2-3/8" (60.32mm) standard. Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Available in Schlage CS keyway and other competitive keyways. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Latch – Brass with 1/2" (12.7mm) throw. All strikes have a 1-1/4" (31.75mm) lip to center dimension. 7/8" (22.225mm) bore in edge of door is required. Requires standard 2-1/8" (53.97mm) bore through door. Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. The Arrow MK Series has a clear design and is a simple solution to accessibility requirements. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in. Strike – Brass, bronze or stainless steel. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available. Supplied with two 5 pin brass keys for stock. Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).

Key Features

• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Requires standard 2-1/8" (53.97mm) bore through door.
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
